Gr180 HP180 142kw/2200rpm Chinese Motor Grader

Basic Info.

Model NO.	Gr180
Condition	New
Application	Railway, Mine, Farmland, Highway
Walking Mode	Wheeled
Type	Medium-sized Grader
Transport Package	Nude Packing
Specification	8900x2625x3420mm
Trademark	China Top 1 Brand
Origin	Xuzhou, Jiangsu, China
HS Code	84292090
Production Capacity	1000 Units/Month

Packaging & Delivery

Package Size 25.00cm * 25.00cm * 25.00cm Package Gross Weight 5.000kg

Product Description

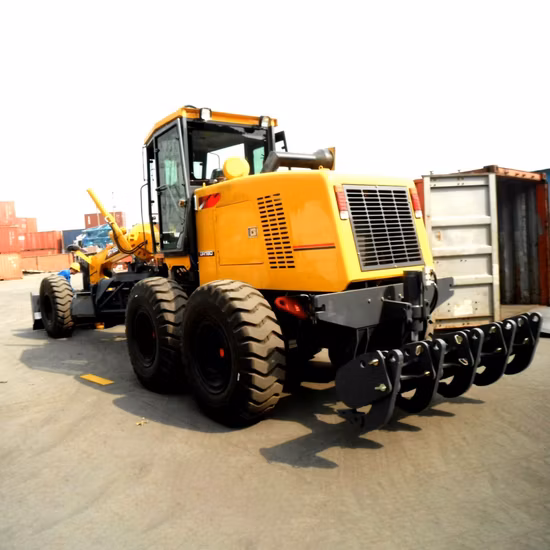

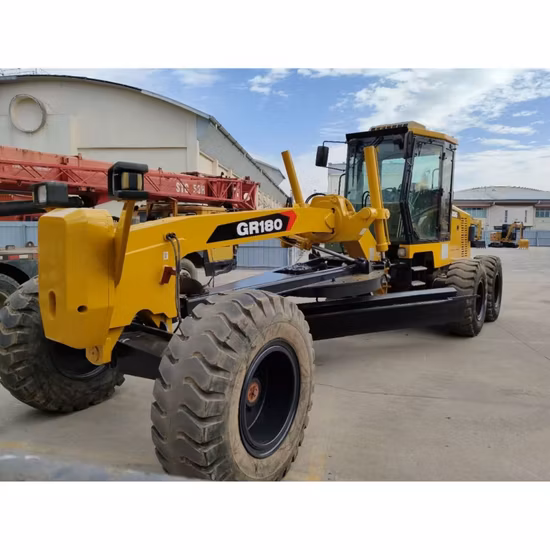

GR180 HP180 142kW/2200rpm motor grader

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow
removal for large areas such as highway, airports, farmlands etc.

It is the necessary construction machinery for national defense construction, mine construction, urban and rural
road construction and water conservancy construction, farmland improvement and so on.

Advantages and Highlights:

1. Dongfeng Engine, Technology Gearbox, and Drive Axle make the drive system power matching more
reasonable and reliable.

2. Double-circuit hydraulic brake system makes the brake more reliable and stable.

3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability
and reliability of the system.

4. Using special enhanced work devices.

5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts
high-strength and wear-resistant material.

6.Various options expand the machine's performance and working range.

Item			GR180
Basic parameters	Engine model		6CTA8.3-C190-II
	Rated power/speed		142kW/2200rpm
	Overall dimension (standard)		8900x2625x3420
	Total weight (standard)		15400 kg
	Tire specification		17.5-25
	Ground clearance (front axle)		430mm
	Tread		2156mm
	Space of front and rear axles		6219 mm
	Space of middle and rear wheels		1538 mm
Performance parameters	Forward velocity		5 8 11 19 23 38km/h
	Reverse speed		5 11 23km/h
	Tractive effort f=0.75		≥79 kN
	Maximum gradeability		≥25%
	Tire inflation pressure		260kPa
	Working system pressure		18MPa
	Transmission pressure		1.3-1.8Mpa
Working parameters	Maximum steering angle of front wheel		±50°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		±15°
	Maximum steering angle of frame		±27°
	Minimum turning radius		7.3m
	Scrape knife	Maximum lift height	450mm
		Maximum cutting depth	500mm
		Maximum tilt angle	90°
		Cutting angle	28°-70°
		Angle of revolution	360°
		Length & chord height	3965x610mm

1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in
Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights
of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous
brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are
constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more
competitive than the price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because
we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely
manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions
all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give
response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or
against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted.
Please seek the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their
spare parts.
